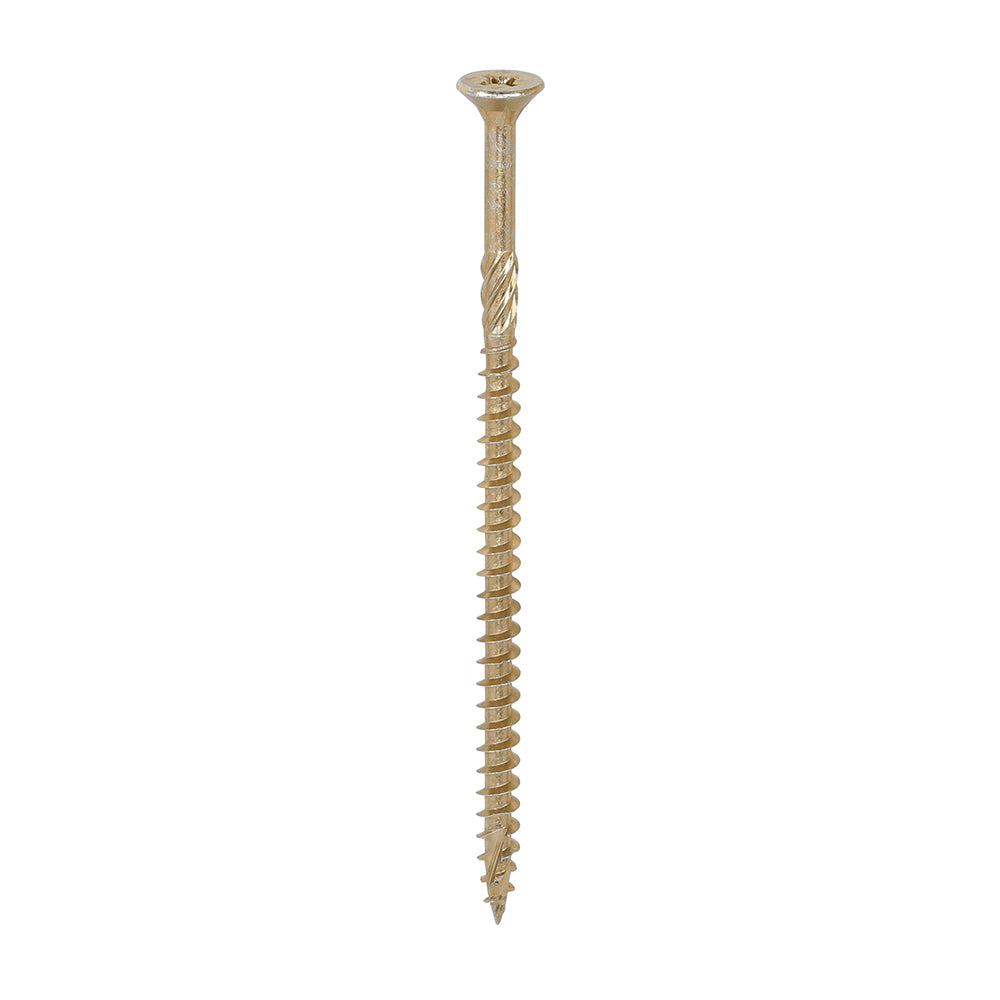

C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior holding strength in a wide variety of materials provides ultimate performance.
• Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid "pick-up" and reduces timber splitting
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
• Helix shank for removing debris and to improve clamping
Product Specifications
| Application |
Joinery, Carpentry, Timber Construction, Furniture Manufacturing |
| Brand |
TIMCO |
| Carton Qty (packs) |
N/A |
| CE Standard |
BS EN 14592:2008 |
| Colour |
Yellow |
| Corrosion Rating (1-5) |
2 - Occasionally damp/wet, rural and sheltered areas |
| Driver Bit Size |
PZ2 |
| Feature 1 |
Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw |
| Feature 2 |
Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage |
| Feature 3 |
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating |
| Feature 4 |
Dual angle thread for ultimate performance and exceptionally high pull-out resistance |
| Feature 5 |
Patented twin cut technology for rapid "pick-up" and reduces timber splitting |
| Feature 6 |
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
| Feature 7 |
Helix shank for removing debris and to improve clamping |
| Finish |
Zinc & Yellow |
| Gauge |
10 |
| Head Ø (mm) |
9.7 |
| Head Type |
Double Countersunk |
| Included Items |
PZ2 38mm Impact Power Bit (Qty 3) |
| Indoor/Outdoor Usage |
Indoor, Covered Outdoor |
| Inner Thread Ø d1 (mm) |
2.95 |
| L (inch) |
4 |
| L (mm) |
100 |
| Lubrication |
Gleitmo |
| Material |
Hardened Steel |
| MOQ |
1 |
| MOQ Increment |
1 |
| Ø (mm) |
5 |
| Pack Dimensions L x W x H (mm) |
243 x 197 x 191 |

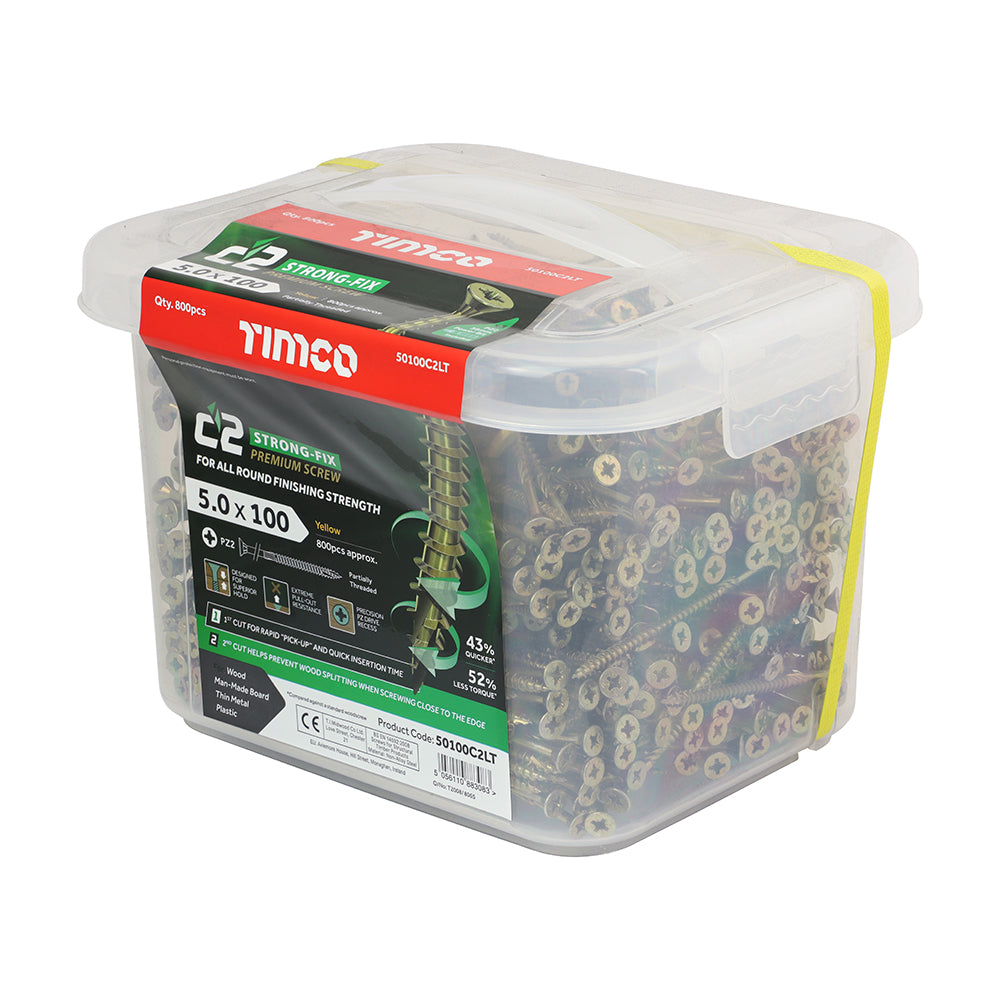

| Pack Qty |
800 |
| Pack Quantity Unit |
Pieces |
| Pack Type |
Tub |
| Pack Weight (kg) |
6.82 |
| Pallet Qty (packs) |
64 |
| Point Type |
Twin-Cut |
| Recess Type |
Pozi |
| Resistant Type |
Corrosion-Resistant |
| Shank Type |
Helix |
| Size |
5.0 x 100 |
| Size (imp.) |
10 x 4 |
| Size (mm) |
5.0 x 100 |
| Substrates |
Wood, Plastic, Thin Sheet Metal, Man-Made Board |
| Thread Coverage |
Partially Threaded |
| Thread L (mm) |
70 |
| Thread Ø (mm) |
5 |
| Thread Type |
40° Single |
