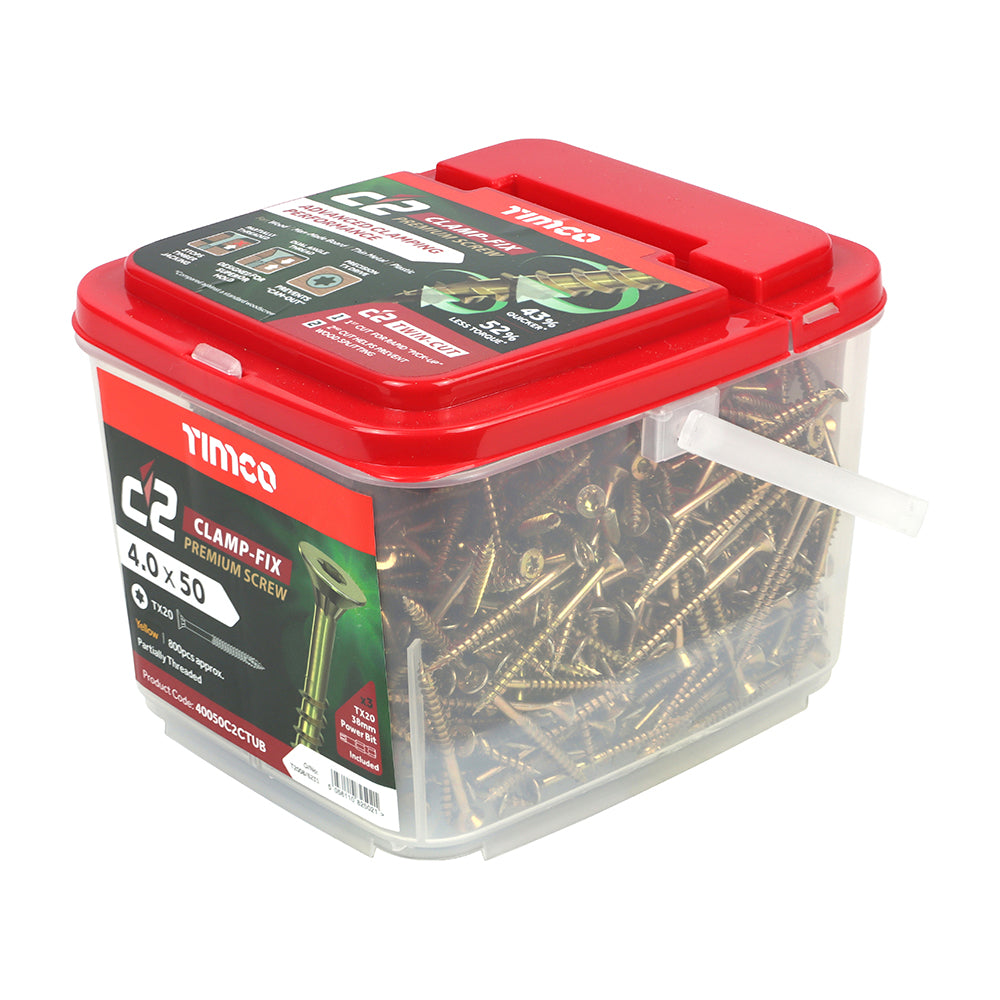

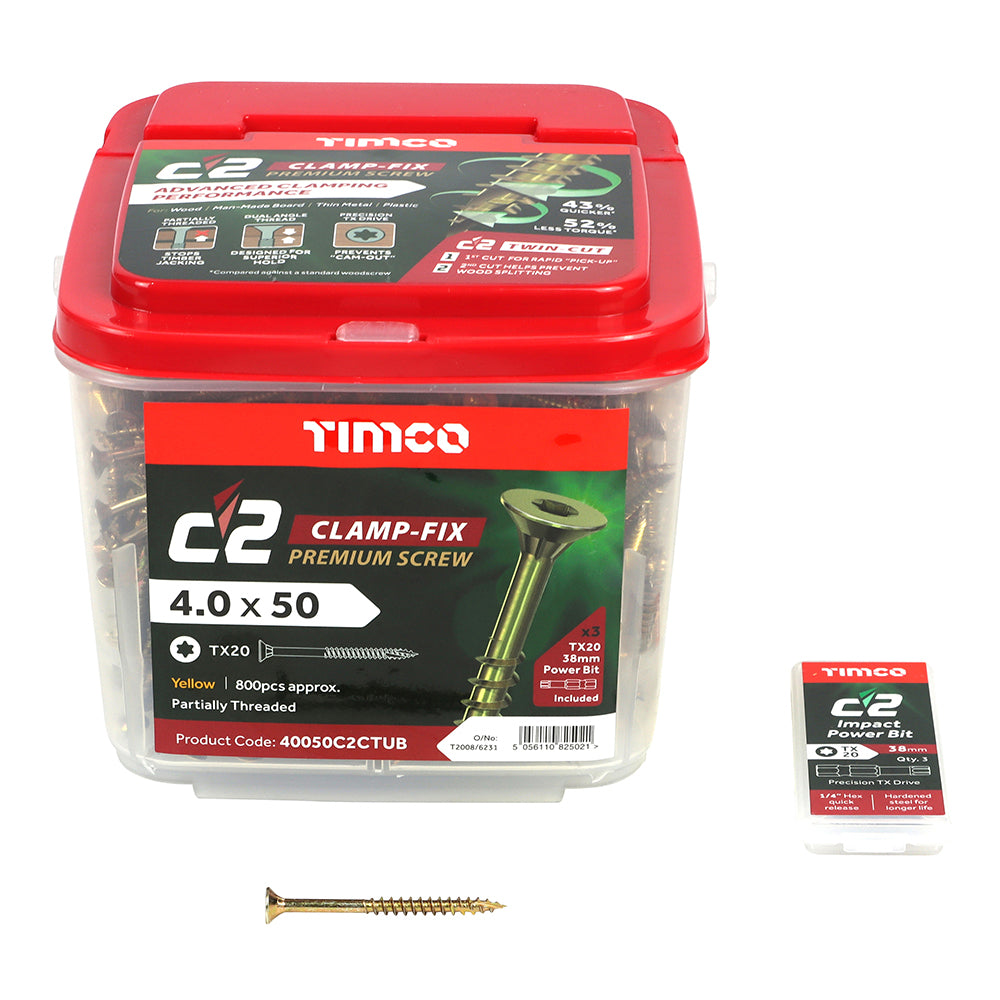

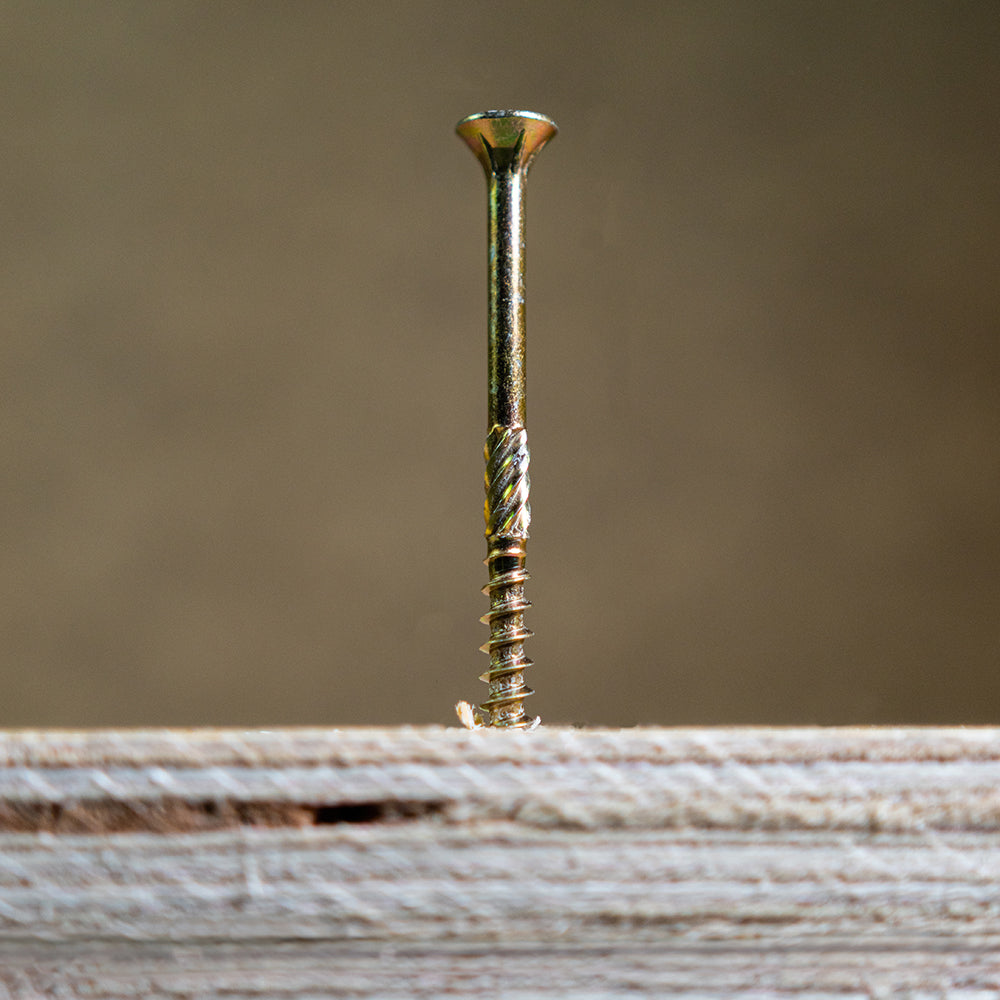

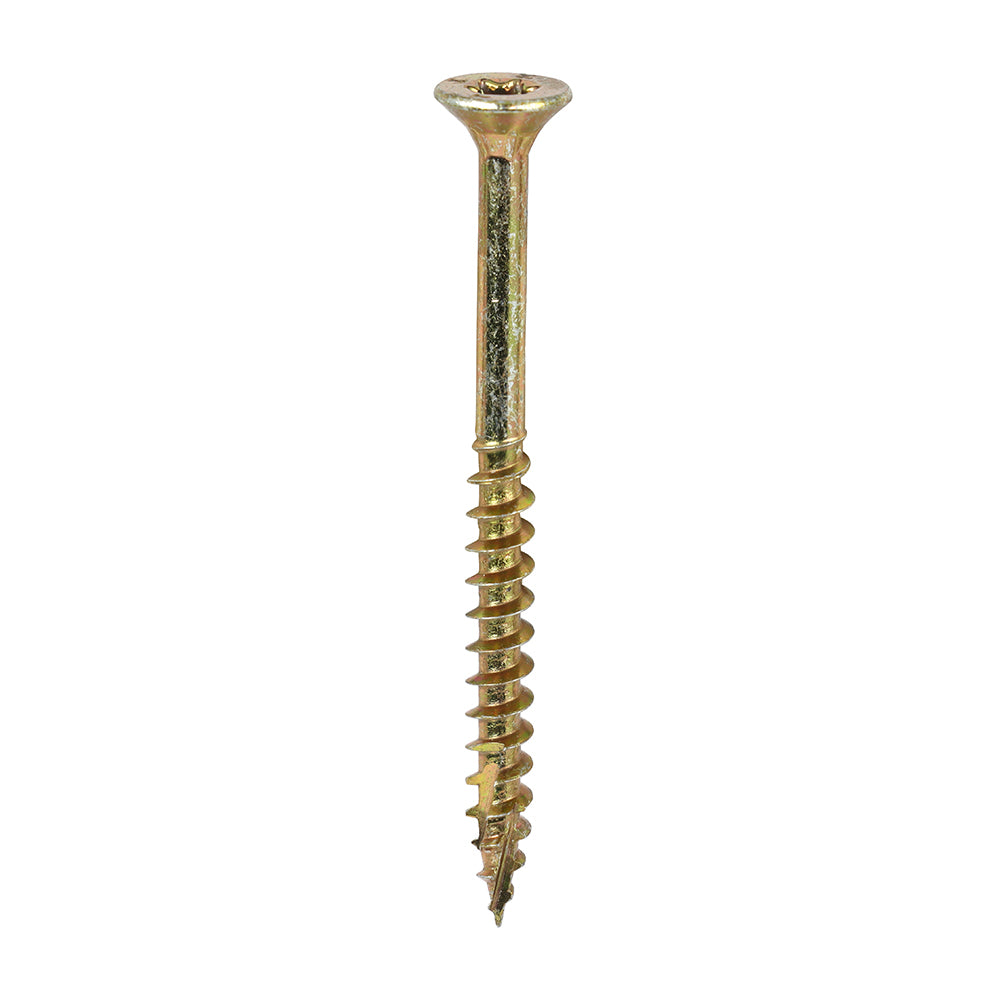

The C2 Clamp-Fix provides a high performance clamping solution that is specifically designed to prevent timber "jacking”. Ideal for timber-to-timber applications where a secure and stable connection is required. ?C2 is a revolutionary high-performance screw designed using modern manufacturing methods and an innovative twin-cut point, ensuring consistent and rapid pick-up while reducing timber splitting. Its superior h
• Precision TX drive recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid "pick-up" and reduces timber splitting
• Partially threaded from 40mm
Product Specifications
| Application |
Joinery, Carpentry, Timber Construction, Furniture Manufacturing |
| Brand |
TIMCO |
| CE Standard |
BS EN 14592:2008 |
| Colour |
Yellow |
| Corrosion Rating (1-5) |
2 - Occasionally damp/wet, rural and sheltered areas |
| Driver Bit Size |
TX20 |
| Feature 1 |
Precision TX drive recess to prevent 'cam-out', giving a precise and positive drive control on every screw |
| Feature 2 |
Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage |
| Feature 3 |
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating |
| Feature 4 |
Dual angle thread for ultimate performance and exceptionally high pull-out resistance |
| Feature 5 |
Patented twin cut technology for rapid "pick-up" and reduces timber splitting |
| Feature 6 |
Partially threaded from 40mm |
| Finish |
Zinc & Yellow |
| Gauge |
8 |
| Head Ø (mm) |
7.7 |
| Head Type |
Double Countersunk with Ribs |

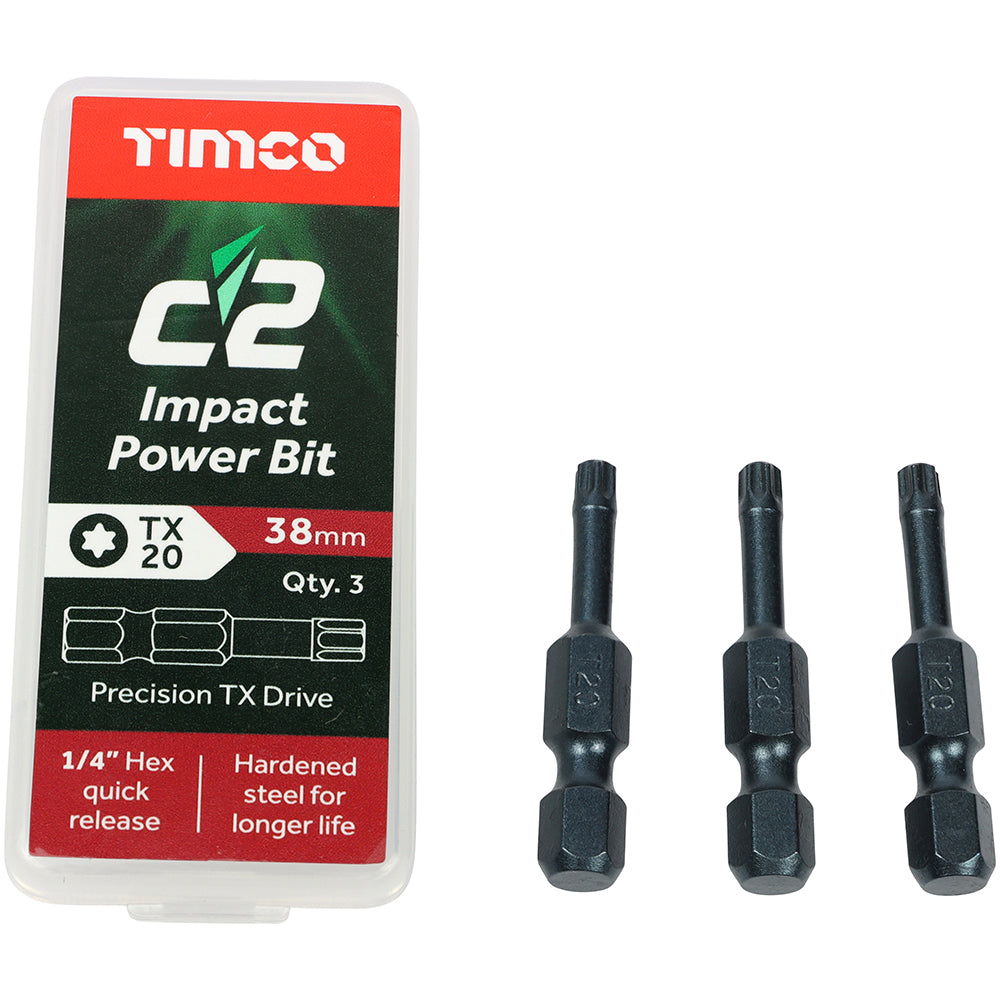

| Included Items |
TX20 38mm Impact Power Bit (Qty 3) |
| Indoor/Outdoor Usage |
Indoor |
| Inner Thread Ø d1 (mm) |
2.35 |
| L (inch) |
2 |
| L (mm) |
50 |
| Lubrication |
Gleitmo |
| Material |
Hardened Steel |
| Max. CFT (mm) |
20 |
| MOQ |
1 |
| MOQ Increment |
1 |
| Ø (mm) |
4 |
| Pack Dimensions L x W x H (mm) |
160 x 140 x 118 |
| Pack Qty |
800 |
| Pack Quantity Unit |
Pieces |
| Pack Type |
Tub |
| Pack Weight (kg) |
2.314 |
| Pallet Qty (packs) |
180 |
| Point Type |
Twin-Cut |
| Recess Type |
TX Drive |
| Resistant Type |
Corrosion-Resistant |
| Size |
4.0 x 50 |
| Size (imp.) |
8 x 2 |
| Size (mm) |
4.0 x 50 |
| Substrates |
Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
| Thread Coverage |
Partially Threaded |
| Thread L (mm) |
30 |
| Thread Ø (mm) |
4 |
| Thread Type |
40° Single |
